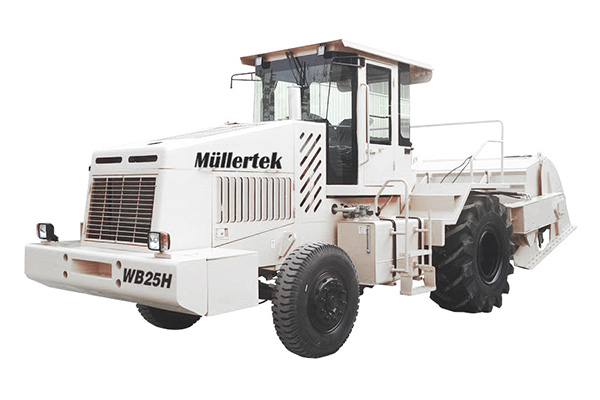

WB25H Technical Parameters
| Item | Unit | Data | |
| Engine | Brand | Weichai Power | |
| Model | WP12G460 | ||
| Emissions | Euro Stage IIIa | ||
| Rated Power | kw/ ps | 338/ 460 | |
| Rated Speed | rpm | 2100 | |
| Maximum Torque | N.m | 2110 | |
| Operating | I gear (Milling speed) | m/ min. | 0-58 |
| II gear (Travelig speed) | km/h | 0-25 | |
| Milling Width | mm | 2500 | |
| Milling Depth | mm | 400 | |
| Gound Clearance | mm | 400 | |
| Grace Ability | ≥ | 40% | |
| Tires | Front Tire | 23.5-25 | |
| Rear Tire | 17.5-25 | ||
| Filling | Fuel Tank | Ltr | 400 |
| Machines | Net Weight | kg | 15,200 |
| Dimensions ( L*W*H) | mm | 8560*3210*3200 | |
